Assetto Corsa Competizione

Setup Guide

Overview

Supported versions of Assetto Corsa Competizione

Windows PC version only

Supported Telemetry Apps

RS Dash ASR

RS Dash

Jump to instructions for RS Dash ASR

Jump to instructions for RS Dash

Jump to troubleshooting

RS Dash ASR

These instructions for specifically for the "RS Dash ASR" app. There are instructions for the regular "RS Dash" app further below"

(Required) Install the Windows version of RS Dash ASR on the Windows PC that Assetto Corsa Competizione is installed on.

(Optional) Install RS Dash ASR on any additional iOS, Android or Windows devices you want to display telemetry on.

In the RS Dash ASR app

(On each device you are running RS Dash ASR on)

Select [Launch] button from the navigation bar along the bottom of the screen.
Select [Assetto Corsa] as the Sim Racing Game
Select a Dashboard Layout you want to display
Select a Recording Option, or disable recording. Note: Recording should only ever be enabled on a single device at a time, ideally on the PC the game runs on for best results.
Click the [LAUNCH] button

(iOS / Android) - These devices will now indicate they are waiting for telemetry data. The IP address of these devices will be displayed as shown below. You will need this information when setting up the telemetry relay on the PC side.

(Windows PC) - On the Windows PC version of RS Dash ASR you will be given the option to relay telemetry data to additional devices.
If you will not be running RS Dash ASR dashboards on any other devices, click the [Skip / Do Not Relay Telemetry] button.
If you will be running RS Dash ASR on other mobile devices then add the IP addresses of each mobile device to the list and then click the [Relay Telemetry To My Listed Devices] button.
Note: the IP Addresses you need to enter will be shown in RS Dash ASR on those devices after launching your selected dashboard.

Once Assetto Corsa Competizione is running and a session has been launched then the app will start receiving telemetry.

RSDashASR

RS Dash

These instructions for specifically for the "RS Dash" app. There are instructions for the "RS Dash ASR" app above"

(Required) Install the RS Transmitter app on the Windows PC that Assetto Corsa Competizione is installed on.

(Required) Install the RS Dash app on any supported devices that you want to use the app on.

In the RS Dash app

(repeat for each device running RS Dash)

Select the [ACC] game tile
The current IP address the RS Dash device will then be shown, along with a message indicating it is "Waiting for RS Transmitter Signal..."

In the RS Transmitter app

Start the RS Transmitter app on the PC that Assetto Corsa Competizione runs on.

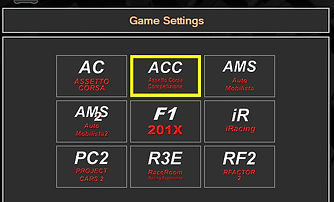

Select the ACC tile

Enter the IP Address of the device RS Dash is running on as shown in RS Dash just above the "Waiting for RS Transmitter Signal" message. If you have multiple devices, just enter the IP Address of one of them.
The "Use Broadcast Mode" flag should be OFF if you only have a single device running RS Dash, or ON if you have multiple devices running RS Dash.
The Update Speed should be 16ms. If you experience lag in the dashboards, try increasing this to 32 or 50ms.
Click the [Start Transmitter] button.

In the RS Dash app, the "Waiting for RS Transmitter Signal..." message should now have changed to either "Waiting for game to start.." (if Assetto Corsa Competizione is not yet running) or the dashboard display should be shown if Assetto Corsa Competizione is running and a session has been started.

RSDash

Troubleshooting

RS Dash (classic) users - RS Dash and RS Transmitter must be version 2.2d or newer

You must be running Assetto Corsa Competizione on the same Windows PC that you are running the RS Transmitter application on.

IMPORTANT: A number of Android devices have experienced issues with the telemetry data stopping during use, or starting and stopping intermittently. If you are experiencing this problem, please turn OFF the "Use Broadcast Mode" flag in the RS Transmitter. You must then make sure that the IP address you have entered in the IP Address field in the RS Transmitter matches the IP address shown when you first start the RS Dash app.

More Troubleshooting Options

Networking/Connectivity Troubleshooting Tips

RS Transmitter Troubleshooting Tips

General Troubleshooting Tips

Troubleshooting
